主要参数

产品特点

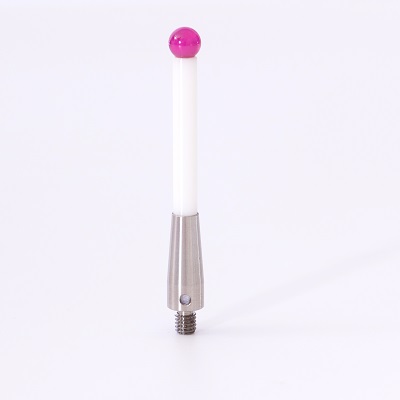

• G5级红宝石测针由测球、测杆、测柄三部分组成。
• 　　The Ruby measuring probe is composed of measuring ball, measuring rod and measuring handle.
• 　　测球以人造红宝石单晶体为材料，利用它有很高的抗压强度和耐磨损性，根据客户需求，也可以提供氮化硅和氧化锆材料的测球，球的圆度最高可达G3。
• 　　The balls are made of synthetic ruby single crystal, which has high compressive strength and wear resistance. we can also provide measure balls of silicon nitride and zirconia materials according to customer's needs. The roundness of the balls can reach G3 grade.
• 　　测杆材料：陶瓷杆、碳化钨、碳纤维、不锈钢等材料。
• Measuring rod material: ceramic rod, tungsten carbide, carbon fiber, stainless steel and other materials.

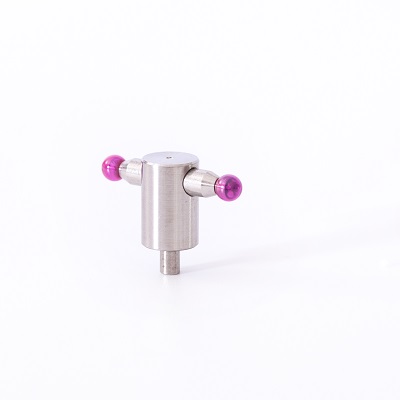

• 　　测针的类型：直测针、星形测针、盘形测针、柱形测针、针形测针、陶瓷测针以及专用测针等。
• 　　Types of probes: straight probe, star probe, disc probe, cylinder probe, needle type probe, ceramic probe and special probe.
• 　　主要应用于三坐标测量机、齿轮检测仪、机床测头上使用，做为触发式传感器的执行元件。
• Mainly used in coordinate measuring machine, gear detector, machine tool probe, as the actuator of trigger sensor.
